Sonnerie Souveraine part 2

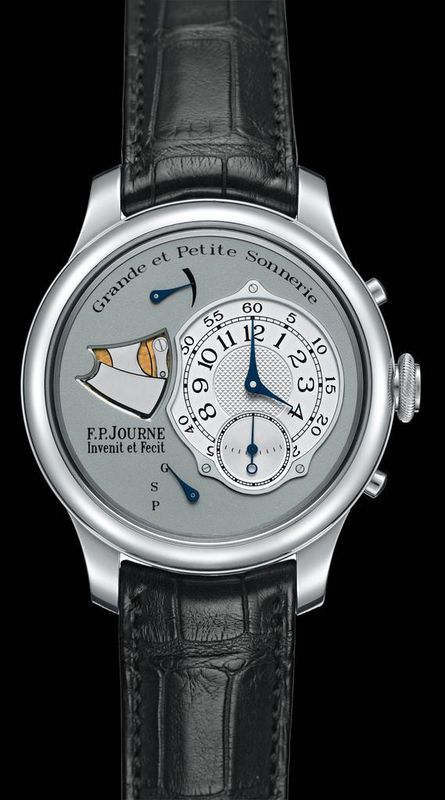

Sonnerie Souveraine by FP Journe


Rating: 69 %1000 with 417 votes
Published by 3796 on December 22 2008, 17:22.

Above this illusion, I invite you to explore your new domain in carefully ready the instruction manual. Each Sonnerie Souveraine is called by the name of its owner. Therefore, you give to your watch a purpose, an identity and a soul. A total of 10 Patents for the SONNERIE SOUVERAINE Barrel A single barrel drives both the going-train and the strike-train from each end of the mainspring. The barrel’s drum, fixed to the outer end of the mainspring coil, has a toothed edge to drive the going-train. The barrel’s arbor, fixed to the inner end of the mainspring, turns a toothed wheel that drives the strike-train through unidirectional gearing. Power reserve indicator A mainspring that unwinds both through the barrel and the arbor requires a sophisticated powerreserve indicator.

The power-reserve indicator has three coaxial differentials. The top differential forms the link between the arbor and the barrel. The lower differential moves according to the winding or unwinding of the arbor. A third differential forms the link between the first two differentials to show the mean power-reserve of the mainspring. Winding and setting system The compact winding and setting system does away with the long stem and sliding-pinion, and finds its place under the dial. In this system, the crown-wheel is permanently meshed with the transmission-wheel mounted coaxially on a rocking arm. The winding-stem slides through a square in the centre of the crownwheel. The transmission-wheel drives intermediate-wheels for winding and for setting the time, mounted at either end of the rocking arm.

Pulling out the winding-stem makes the pullout piece pivot the arm to mesh the intermediate-wheels with the minute-wheel for setting the hands. With the stem in the winding position, the torque produced by the winding action on the transmission wheel, swings the rocking arm to mesh intermediate wheel with the winding ratchet. Strike selection Controlled by a column wheel, the mechanism to select and indicate the strike mode performs its duties with the minimum of parts. The rotating column-wheel acts on three levers: the lever to select grand strike or small strike, the lever to select silence and the sprung rocking-arm that indicates the selected strike mode on the dial via a rack and pinion.

Pressing the strike-select button makes rocking-arm lift the sprung pawl. The pawl pulls the 12- toothed wheel step by step to rotate the column-wheel through consecutive cycles of actions. The striking racks The construction of the movement, with the hours and minutes off-centre, allows the striking-racks to be mounted in the centre of the movement. This in turn makes possible outsize racks for greater precision and control. The strike is governed by three coaxially mounted racks: for the hours for the quarters and for the minutes. Each has ratchet toothing to activate the hammers.

When the strike is released, the racks drop on their respective cams. They are then immediately engaged by the strike-train and lifted to the end of their travel. As the racks lift, their outer teeth engage the gathering-pallets to strike the gongs. The distance each rack is lifted, thus number of teeth presented to activate the strike, depends on its starting point on its cam. The strike sequence The hours-rack has a toothed sector where it is engaged by the strike-train. The teeth are permanently meshed with a free pinion, rotating coaxially on the fixed pinion of the strike-train. To lift the rack, the rocking clutch-pinion engages the free and fixed pinions, locking them together, and transferring the drive from the strike-train to the rack. When the clutch-pinion disengages, the sprung-rack brings the rack’s finger down on the cam. Strike release Every quarter hour, a tooth on the star-wheel pivots the trigger against its spring to set in motion the chime in passing. The trigger acts through sprung levers to disengage the rocking arm from the pivoting clutch.

This frees the pinion to allow the racks to fall on their cams. The spring then returns the rocking arm against the pivoting clutch (o re-engage pinion to lift the racks. The minute-repeating strike is released by pressing button. The pivoting levers act on the rocking arm to disengage the clutch and allow the racks to fall. Chiming gongs This new design produces a louder, clearer sound from gongs that are just three-tenths of a millimetre thick. Mounting the gongs on the movement instead of around it increases the diameter of the movement.

The gongs for a chiming mechanism consist of a flat blade one end of which can be fastened to the structure of the watch. The free part of the blade is shaped so that its natural frequency is audible when its edge is struck. Blocking the strike automatically The chimes are automatically blocked to reserve the last 24 hours of the mainspring’s energy to the movement. A cam, working off the power-reserve differential, switches the pivoting lever when the power reserve falls to 24 hours. The blocking device keeps the clutch-pinion meshed with the driving pinions of the rack, thus preventing the racks from falling to start the chime. When the power-reserve exceeds 24 hours, the cam releases the blocking mechanism, returning the pivoting clutch to the control of the rocking arm.

Blocking the strike and the winding stem This safety system prevents the winding-stem from being pulled out when the strike is operating, and it blocks the strike when the stem is pulled out. A locking-cam can be pivoted in two positions: one to block the manual strike-release button, the other to lock the winding-stem by acting on. Pulling the winding stem out pushes the lever to the left, pivoting the locking-cam so that it blocks the manual strike-release. The locking cam is also switched by a pivoting sprung arm connected to the hours-rack. As soon as the rack moves to begin the strike, the arm pivots the cam so that it engages the stem-blocking device and prevents the stem from being pulled out to set the time.
