H1 HYDRO MECHANICAL WATCH

The first timepiece ever to combine mechanical and liquid engineering

H1 HYDRO MECHANICAL WATCH

An encounter between Fine Watchmaking and fluid mechanics.

Shattering all certainties, steamrollering conformity, the idea that led to the H1 was simple and consisted of two flexible reservoirs fixed to each end of a capillary.

In one was an aqueous liquid filled with fluorescein, and in the other, a transparent viscous liquid.

To keep them separate: the repulsive force of the molecules in each liquid, with a meniscus
to mark the boundary between the two.

The two reservoirs at 06:00. While the first compresses, the second expands, and the other way round, resulting in the movement of the liquid in the capillary.

As the hours go by, the fluorescent liquid advances.

The meniscus, in the shape of a half moon, marks the breaking point with the other fluid in the tube, indicating the time.

At 18:00, the fluorescent liquid comes back to its original position, going backwards. The secret that gets the reservoirs going?

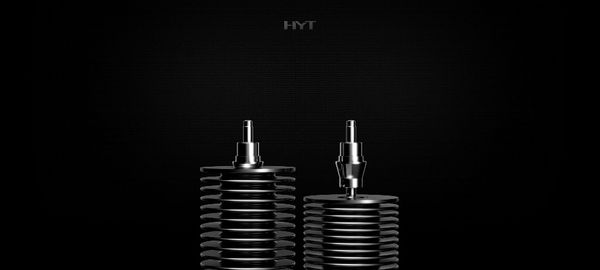

Two bellows made of a highly resistant, flexible electro-deposited alloy, each driven by a piston.

And this is where watchmaking comes in to activate the system.

A mechanical movement to activate the hydro system.

Orchestrated by Bruno Moutarlier, alongside Jean-François Mojon and his Chronode SA team, a mechanical movement is situated in the upper part of the watch, and propels a cam, which pushes the piston and activates the bellows.

The main challenge lay in finding an interface between the mechanical movement and the hydro system in a closed, waterproof circuit, a task further complicated by the limited space available to house them both.

They had to be assembled separately to keep them independent, and then made to operate simultaneously.

This is a highly delicate modular integration, which involves other constraints, such as the installation of the dial in two parts, through the sides.

From concept to reality:

the convergence of two worlds with a common aim

While the basic idea is simple, realising it is highly complex.

Led by Bruno Moutarlier, two teams worked together.

On the watchmaking front were Jean-François Mojon and his supporting team at Chronode. Working on the fluid operation was Preciflex, the patent registration company created by the founders of HYT – Patrick Berdoz, Lucien Vouillamoz and Emmanuel Savioz.

Supporting Preciflex was Helbling Technik, from the medical world, where fluid motion is used in certain treatments.

An incredible human adventure that propelled two worlds in principle at odds with each other towards a new joint era – that in which a unique technology would rock not only watchmaking but also medtech, because the pump system would lead the way for brand-new applications in that field.

Watchmaking exploration bordering on nanotechnology

Step 1:
Develop liquids that obey a set of watchmaking specifications.

Colour, homogenous texture, resistant to vibrations, shocks and temperature changes, no alteration in the long term, foolproof water resistance.

Needs that require the development of a number of innovations.

Up till now, seven patents have been registered for the technology and one for the design.
This was a steep plunge into the unknown, which led to technical watchmaking feats bordering on nanotechnologies

Mastering the energy requirements
Hydraulic force means pressure.
When the fluorescein-loaded liquid has done a complete round and gets to 06:00 – 18:00, the issuing pump compresses, while the bellows receiver expands, generating resistance and consequently an increased energy requirement.

To fix this, Preciflex developed revolutionary bellows made from an extremely fine alloy and
which are highly supple and resistant.

They are in fact inspired by the sensors used by NASA and their design had to be adapted to watchmaking requirements.

Their specially researched shape allows for the reduction of energy required for their compression, absorbs shocks and ensures rock
solid waterproofing.

Metaphysics of fluids
During the entire development process, alongside the engineering, the amounts of liquid were the focus of great attention.

Every microlitre counts, and the total volume in the closed circuit is extremely precise, as the system has to have a nanotechnology-worthy level of water resistance.

Due to the unusual link between the crown and the liquid, a special time-setting system
was designed in order to avoid the liquid moving around too fast and damaging the meniscus.

An emotional accelerator
The taut, aggressive design by Sébastien Perret dictates the testosteroneladen nature of the H1.

A completely non-standard construction. Threedimensional architecture viewed just as well from the front as from the side or three-quarters through a sculptural 5mm sapphire crystal carved from the block, itself topped by a dome at 6 o’clock imposing its own rules.

Particles of fluorescein spring from it, like sparks flying off the passing hours.

The industrious pistons and bellows converge toward it.

The apparently unstructured upper part of the watch dictates a geometric design composed of strata and reliefs.

In the centre sits the minute regulator, overlapped by a spectacular small seconds display resembling a water wheel.

At 02.30, a 65-hour power-reserve hand indicates the remaining energy available across three arcs of a circle. And meanwhile, the fluids follow their course around the case.

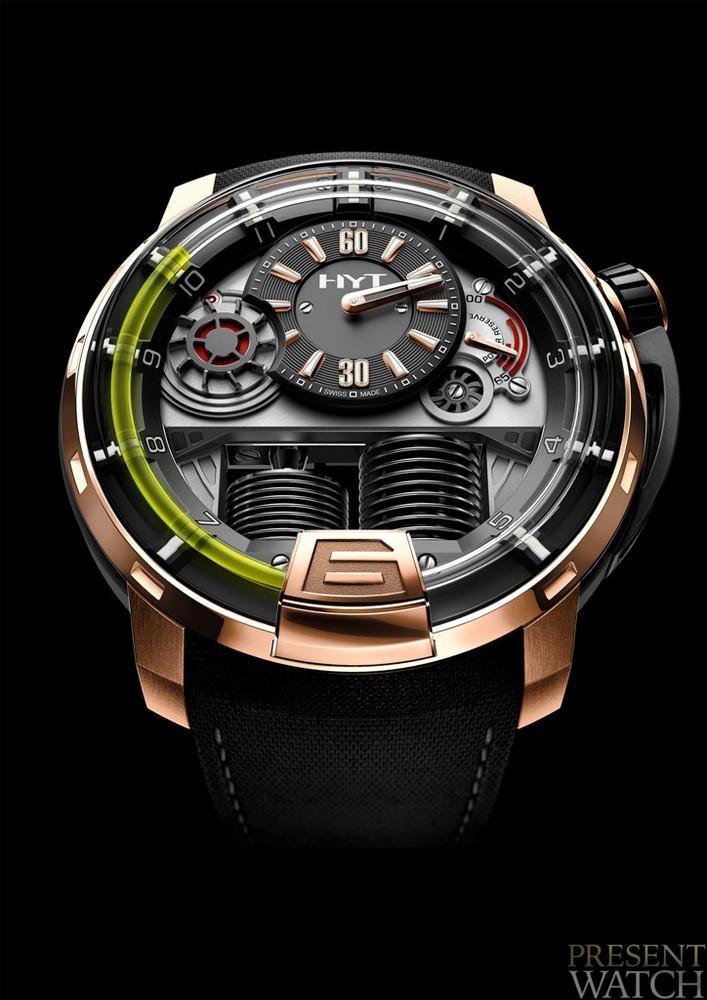

This "monster" measuring 48.8 mm in
diameter and 17.9 mm thick nonetheless sits impressively lightly and well on the wrist.

The notches in its caseband visually extend the applied baignoiretype hour-markers, while the crown dovetails at 02:30, as is thrust against
the case by its sturdy crown guard.

You can found here the videos of this fantastic work of art

1 - H1 HYDRO MECHANICAL WATCH VIDEO 1

2 - H1 HYDRO MECHANICAL WATCH VIDEO 2

3 - H1 HYDRO MECHANICAL WATCH VIDEO 3

4 - H1 HYDRO MECHANICAL WATCH - NEW VIDEO

RETAIL PRICE:
EUROS 45,000.00

TECHNICAL DETAILS of the H1 HYDRO MECHANICAL watch

HYT H1 BLACK DLC

Versions:
HYT H1 BLACK DLC
HYT H1 TITANIUM
HYT H1 PINK GOLD
HYT H1 BLACK DLC-PINK GOLD

MOVEMENT:
Mechanical hand-wound, exclusive HYT calibre
Bridges hand-chamfered and adorned with Côtes de Genève
Rhodiumed bellows

VIBRATIONS:
28,800 vph 4,0 (Hz)

JEWELS:
35 Jewels

POWER RESERVE:
65 hours

FUNCTIONS:
Retrograde fluid hours, minutes, seconds

CASE:
Titanium
Bead-blasted and satin-brushed finish
Rubber-clad screw-lock crown
Titanium crown guard
Screw-locked added lugs
Metal dome at 06:00
Cambered sapphire crystal with glareproofed interior
Screw-down sapphire back

SIZE:
Measuring 48,80mm in diameter

DIAL:
Unstructured, silver-toned opaline
Fluid hours, luminescent hands and hour-markers
regulator at 12:00
Small seconds wheel at 09:30
Power-reserve indicator at 02:30

STRAP:
Hand-sewn leather-lined canvas, pin buckle

FOR MORE INFORMATIONS:

SITE:
www.hytwatches.com
