Richard Mille Tourbillon RM 021 “Aerodyne”

A beautiful masterpiece by Richard Mille


Rating: 67 %1000 with 199 votes
Published by 3783 on October 20 2010, 19:24.

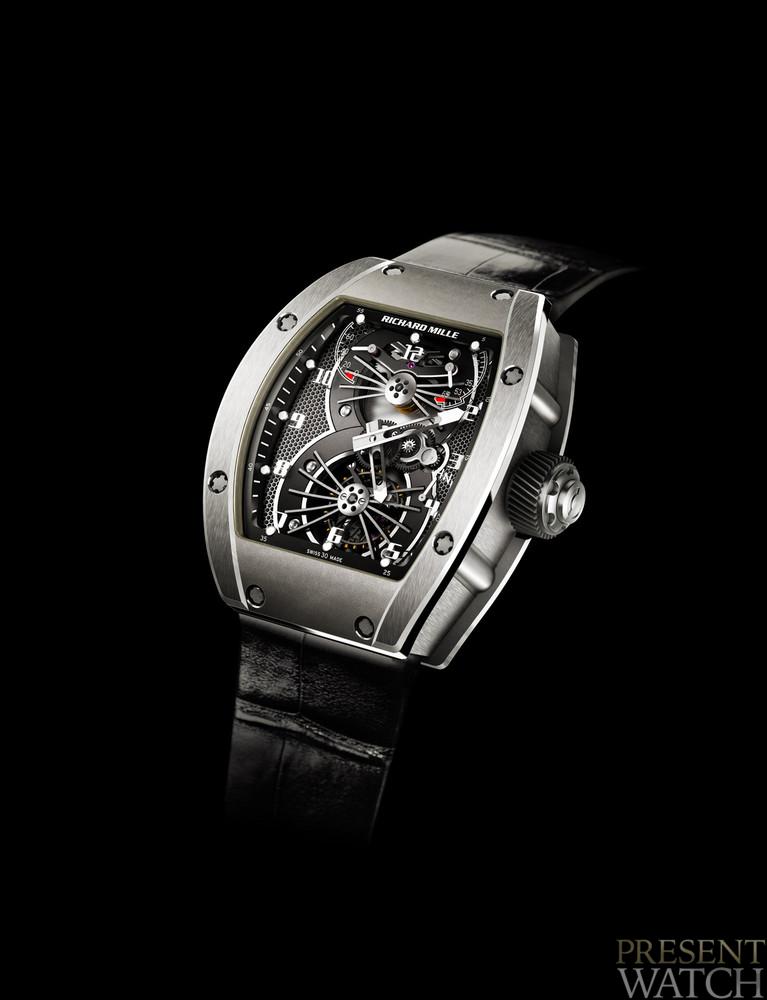

The Richard Mille Tourbillon RM 021 “Aerodyne”
Continuing the expansion and application of truly unique materials to watchmaking, the RM 021 is the
first watch created with a composite baseplate utilizing a titanium exterior framework in combination
with honeycombed orthorhombic titanium alumide and carbon nanofiber.

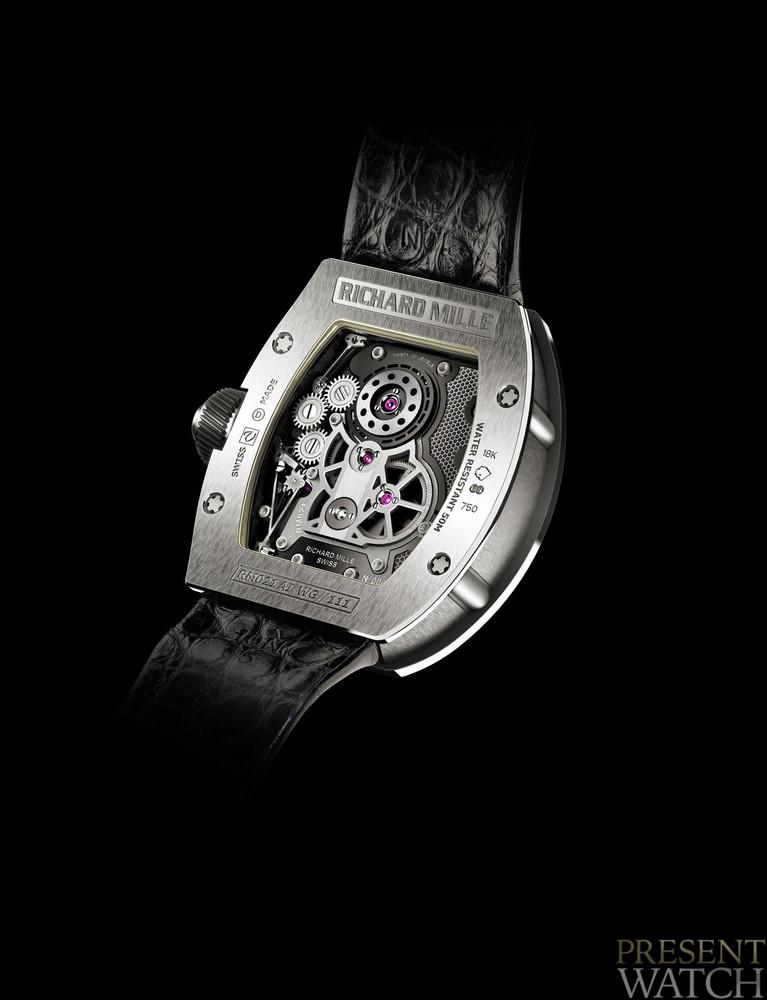

CALIBER RM 021: manual winding tourbillon movement with hours, minutes, power reserve, torque
indicator and function selector.
Dimensions : length 48 mm x 39.30 mm (widest point) x 13.84 mm (thickest area).

Tourbillon Richard Mille 021 specifications
- Movement dimensions: 30.20 x 28.60 mm
- Thickness: 6.35 mm
- Tourbillon diameter: 12.30 mm
- Balance wheel diameter: 10 mm
- Number of jewels: 23
- Balance: GLUCYDUR, 2 arms, 20 setting screws, inertia moment 10 mg/cm2, angle of lift 53º
- Frequency: 21,600 vph (3 Hz)
- Balance spring: ELINVAR by NIVAROX
- Torque indicator with reference measurement in dNmm
- Shock protection: KIF ELASTOR KE 160 B28
- Stone setting in white gold
- Barrel shaft in nickel-free chronifer (DIN x 46 Cr 13 + S) with the following characteristics:
stainless- antimagnetic- suitable for tempering
FINISHING
MOVEMENT
- Anglages polished by hand
- Locking sections hand polished
- Sapphire blasted milled sections
- Lapped and polished contact points
- Burnished pivots
STEEL PARTS
- Sapphire blasted surfaces
- Anglages polished by hand
GEAR WHEELS
- Concave chamfering with a diamond tool
- Circular finished faces
- Gilded (before cutting the teeth)
- Minimum correction applied to the wheels in order to preserve geometry and performance
