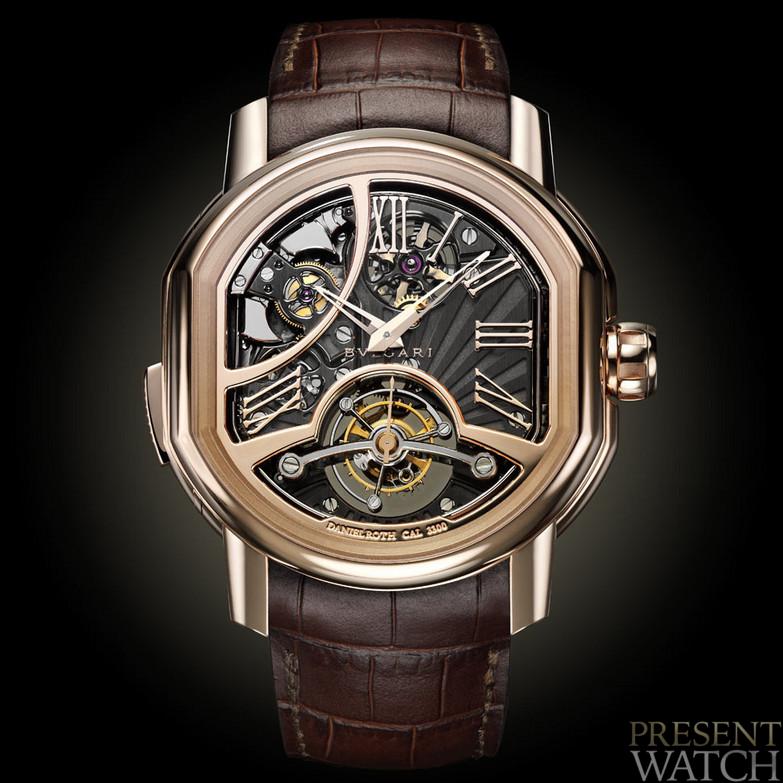

Daniel Roth Carillon Tourbillon Minute Repeater

"DANIEL ROTH" launched by BVLGARY

LIMITED EDITION 30 PIECES

A really marvelous timepiece

This is a brilliant demonstration of this expertise accomplished

WORKED ENTIRELY AT HOME

Comprising a total of 327 pieces

Took six months to be crafted

TECHNICAL DETAILS of the Daniel Roth Carillon Tourbillon Minute Repeater

REFERENCE: Toubillon Minute Repeater DR3300

CASE:
Pink gold 18K
Crown in pink gold 18K with an indication of the limited nunber of pieces

DIAL:
Manufacture made sapphire dial with a special cut-out highlighting the hammers and the tourbillon.Pointers to the center for hours and minutes,seconds pointer on top of tourbillon.Finished in polished steel for hammers,gongs and tourbillon carriage surfaces.The main plate and bridges decorated are lined with an elegant surface treatment NAC:an aloy composed exclusively of noble metals belonging to the family of Platinium:platinium,rhodium,ruthenium and indium.This high-tech coating whitch it is difficult to achieve through associating these four metals, it gives the metal an elegant black colour

STRAP:
Alligator leather strap equipped with a triple-blade pink gold folding clasp

MOVEMENT:
Calibre DR3300
Entirely crafted in-house
Made of 327 components,three-hammer minute repeater and turbillon with large 13mm carriage,silent inertia governor,NAC surface polished on the bridges and nainplate,bridges adorned with sunburst engraving,polished and chamfered steel parts,polished screw heads,gold-plated gear wheels.

SIZE:
Measuring 43mm in diameter
The hand-wond calibre DR3300 is generously proportioned: 34,6mm x 31,6mm

GLASS:
Transparent sapphire crystal with anti-reflective finish

CASE BACK:
Transparent sapphire crystal with anti-reflective finish,with the indication of power reserv and the indication of a Limited Edition

WATER RESISTANCE:
3 Bar = 30 meters

FUNCTIONS:
Hours,minutes,seconds,grande sonnerie and in the back power reserv indication.
The movement is equipped with two barrels:one ensures the smooth running of the striking mechanism and is automatically wound when the later is activated,while the other,when fully wound,guarantees the movement at least 75 hours of power.Is state is signalled by an indication on the back of the case

MINUTE REPEATER:
The melodic sequence of this tree-hammer Minute Repeater striking three different pitches plays a C note for the hours,an E-D-C sequence for the quarter-hours,and a single E note for the minutes

POWER RESERVE:
75 hours

VIBRATIONS:
21,600 vph (3Hz)

JEWELS:
35 jewels

Published by José Sousa
